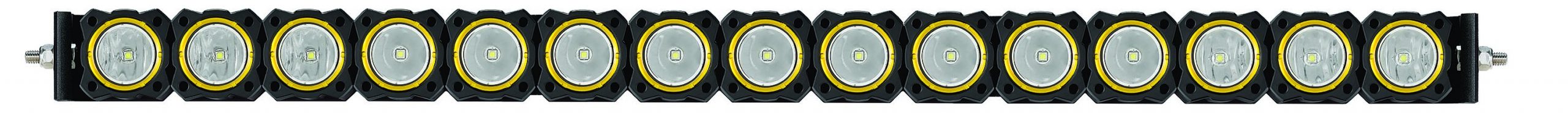

276 – KC FLEX LED 30″ Bar Combo System 150w Light Bar

$1,289.99

KC HiLiTES 10″- 50″ KC FLEX™ Array LED Light Bar outputs 50w to 250w of LED power in a combo spot/spread beam pattern. Featuring a 5-core to 25-core aluminum design and a patent pending power system for endless linking and stacking of lights. Includes wiring harness.

FEATURES
-10 to 50″ KC FLEX™ Array LED Light Bar
-Die-Cast Aluminum Housings
-KC Precision Reflector Optics
-Patent Pending Pass Through Power Bus
-Spot Beam or Combo Spot and Spread Beam Pattern

LIGHT PERFORMANCE
-RAW Lumens: 10″= 4,875 lm, 20″= 9,750 lm, 30″= 14,625 lm, 40″= 19,500 lm, 50″= 24,375 lm
-LUX @ 10 meters: 10″= 1,200 lx or 1,150 lx, 20″= 1,900 lx, 30″= 2,700 lx, 40″= 3,700 lx, 50″= 4,400 lx
-Candela: 10″=120,000 cd, 115,000 cd, 20″= 190,000 cd, 30″= 270,000 cd, 40″= 370,00 cd, 50″= 440,000 cd
-Beam Distance (Meters): 10″= 693m or 678m, 20″= 872m , 30″= 1,039m, 40″= 1,217m, 50″= 1,327m

SPECIFICATIONS(PER LIGHT)
-Wattage: 50W-250W
-LED Source: CREE XM-L2 U2
-Amp Draw: 5.0A-25.0A
-Voltage: 9V-18V
-IP Rating: IP68
-Product Dimensions: W – 11.375″-51.375″ x H – 2.45″ x D – 3.25″

Parts in every KC FLEX™ Array
-Deluxe Wiring Harness with weather proof connectors and light switch

OPTICAL PERFORMANCE AND LED EFFICIENCY
Combining KC precision injected reflector optics and efficient LEDs to deliver up to 4,400 lx @10m of race performance light output and optical clarity.

EXPANDABILITY FOR CUSTOM LIGHT ARRAYS
Comes complete with a u-bracket that mounts FLEX LED Singles easily in tight spaces.

AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high speed visibility.

Combo Beam- A combo beam pattern, with perfectly angled Spot & Spread reflectors, for maximum forward distance and improved peripheral illumination along road edges

BAJA 1000 RACE TESTED STRENGTH & DURABILITY
Using an IP68 rated Die-Cast Aluminum Housing with a hard coated polycarbonate lens, KC FLEX™ LEDs are tested and approved by race teams for extreme durability in harsh terrains.

SKU: 276 Category:

Description

KC HiLiTES 10″- 50″ KC FLEX™ Array LED Light Bar outputs 50w to 250w of LED power in a combo spot/spread beam pattern. Featuring a 5-core to 25-core aluminum design and a patent pending power system for endless linking and stacking of lights. Includes wiring harness.

Additional information

Weight 4.0000 oz
Description

KC HiLiTES 10"- 50" KC FLEX™ Array LED Light Bar outputs 50w to 250w of LED power in a combo spot/spread beam pattern. Featuring a 5-core to 25-core aluminum design and a patent pending power system f
