ET004/ET005 Welded Grille Guard C4500-6500

Image May Be a Generic Representation

Medium Duty Grille Guards

$1,790.48 – $3,511.00

Go Industries Winch Style Grille Guard for the Chevrolet C4500, Chevy 6500, Ford F750, F650 and International CV515 features no cutting or drilling. Designed with the tilt body in mind, this piece will articulate forward for easy hood access. Our locking mechanism has two OEM style latches (One per side) and safety pins ensuring a snug, secure mount. This unit comes with a winch tray that will hold up to a 16.5k winch (Accommodates most brands). The grille guard is fully welded together with headlight Brush Guards constructed out of 1.9”, 14 gauge tubing and 2.5” center cross tubes. The center screen is laser cut out of 18 gauge material. Part comes in a Black textured powder coat finish. Proudly made in the U.S.A.

SKU: N/A Categories: , ,

Description

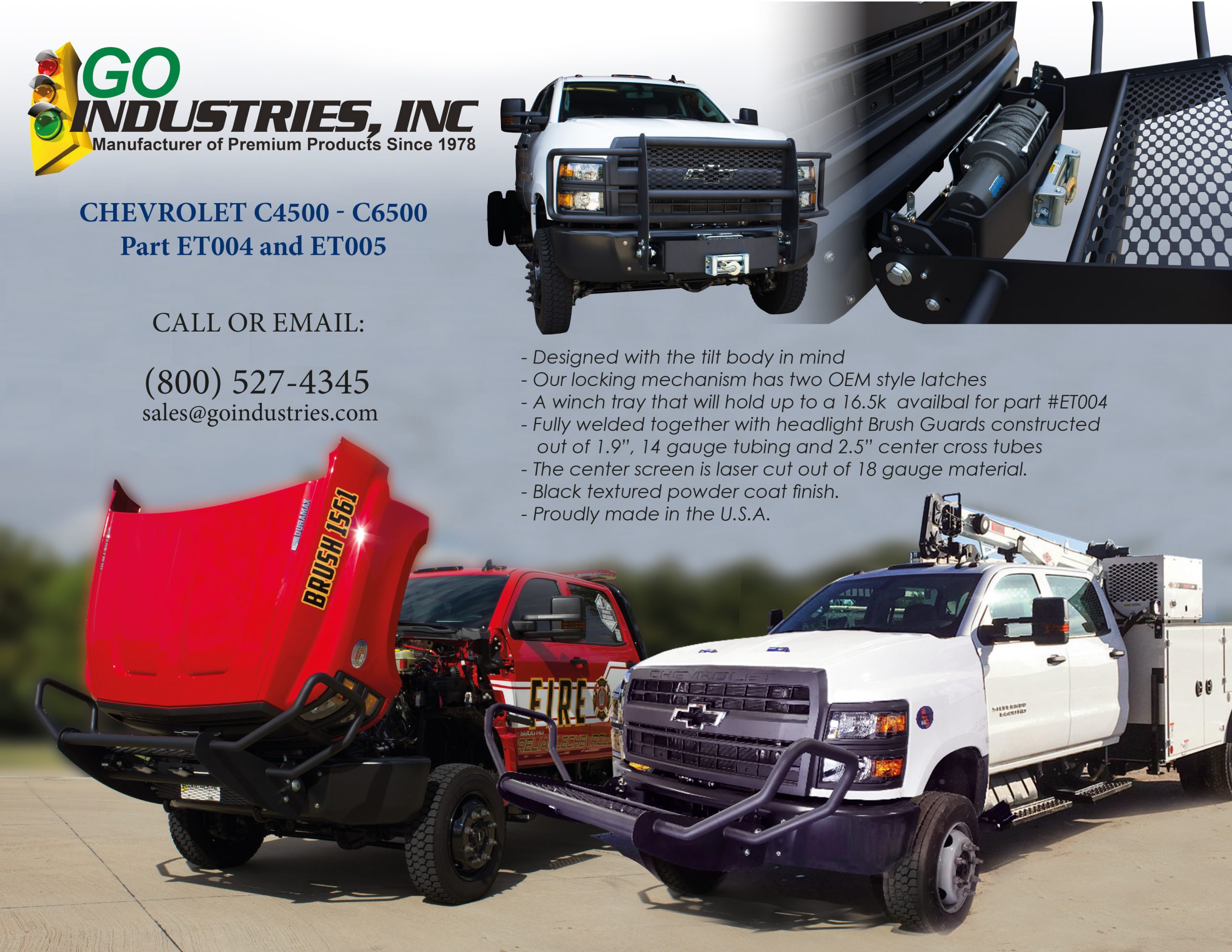

The Original Tilt Body Grille Guard for Chevy C4500-6500, Ford F650-F750 and International CV515

Go Industries Winch and Non-Winch Style Grille Guard for the Chevy C4500-6500, International CV515 and Ford F650-F750  features no cutting or drilling. Designed with the tilt body in mind, this piece will articulate forward for easy hood access. Our locking mechanism has two OEM style latches (One per side) and safety pins ensuring a snug, secure mount. This unit comes with a winch tray that will hold up to a 16.5k winch (Which accommodates most brands). The grille guard is fully welded together with headlight Brush Guards constructed out of 1.9”, 14 gauge tubing, and 2.5” center cross tubes. The center screen is laser cut out of 18 gauge material. Part comes in a Black textured powder coat finish. Proudly made in the U.S.A.

Additional information

Features

FEATURES:
Forward Tilt Articulation for Easy Hood Access
No Cut – No Drill Installation
Locking System with OEM-Style Latches and Safety Pins

Available for:

Chevrolet C4500
Chevrolet C6500
International CV515
Ford F650
Ford F750
Secure Mounting
Holds up to a 16.5K Winch
Heavy Duty for Duty Truck and Commercial Fleet Use
Powder Coat Finish (Black)
MADE IN THE USA
Mile Maker Winch

Steel Cable
Part Number 76-50260W
Rated line pull 15,000 lbs (6810 kgs), Single line
Gear Train 3 Stage Planetary
Gear Ratio 294 : 1
Motor Series Wound, 6.8 hp, 12V, (24V not available)
Remote Control Power-In, Power-Out Remote, 12’ (3.7 m)
Dimensions (LxWxH) 22.44” X 6.29” X 11.00” (570 mm X 160 mm X 280 mm)
Steel Cable 3/8 x 79′ (9.5 mm X 22m)
Drum Size 2.9” X 8.9” (75 mm X 228 mm )
Net weight 85 lbs
Bolt Pattern 4 Bolt Pattern, 4.5” X 10″ (114.3 mm X 254 mm)

Synthetic Rope
Part Number 76-53260W
Rated line pull 15,000 lbs (6810 kgs), Single line
Gear Train 3 Stage Planetary
Gear Ratio 294 : 1
Motor Series Wound, 6.8 hp, 12V, (24V not available)
Remote Control Power-In, Power-Out Remote, 12’ (3.7 m)
Dimensions (LxWxH) 22.44” X 6.29” X 11.00” (570 mm X 160 mm X 280 mm)
Synthetic Rope 3/8 x 72′ (10.3 mm X 22m)
Drum Size 2.9” X 8.9” (75 mm X 228 mm )
Net weight 63 lbs (28.5 kg)
Bolt Pattern 4 Bolt Pattern, 4.5” X 10″ (114.3 mm X 254 mm)
