MM76-53246BW SEC95 – 9500 lb. WINCH WITH SYNTHETIC ROPE

$847.55

The Mile Marker SEC95 (es) premium Jeep/Truck/SUV winch with a rugged 9,500 pound pull strength stands up to most any off-road environment. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch. With robust controls, fully sealed 500-amp solenoids and body, and an integrated kill switch, the SEC95 (es) is an industry proven winch at an unmatched value.

Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC95 (es) comes with a 3/8” x 100’ synthetic rope, an anodized aluminum hawse fairlead, stainless steel hardware, a hook, corrosive-resistant, and a handheld remote control with a 12′ cord.

SKU: MM76-53246BW Categories: ,

Description

The Mile Marker SEC95 (es) premium Jeep/Truck/SUV winch with a rugged 9,500 pound pull strength stands up to most any off-road environment. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch. With robust controls, fully sealed 500-amp solenoids and body, and an integrated kill switch, the SEC95 (es) is an industry proven winch at an unmatched value.

Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC95 (es) comes with a 3/8” x 100’ synthetic rope, an anodized aluminum hawse fairlead, stainless steel hardware, a hook, corrosive-resistant, and a handheld remote control with a 12′ cord.

Additional information

Sprecifications

Part Number 76-53246BW
Rated line pull 9500 lbs (4309 Kgs)
Gear Train 3 Stage Planetary
Gear Ratio 212:1
Motor Series Wound, 4.8 hp (3.6 kw), 12 / 24 V

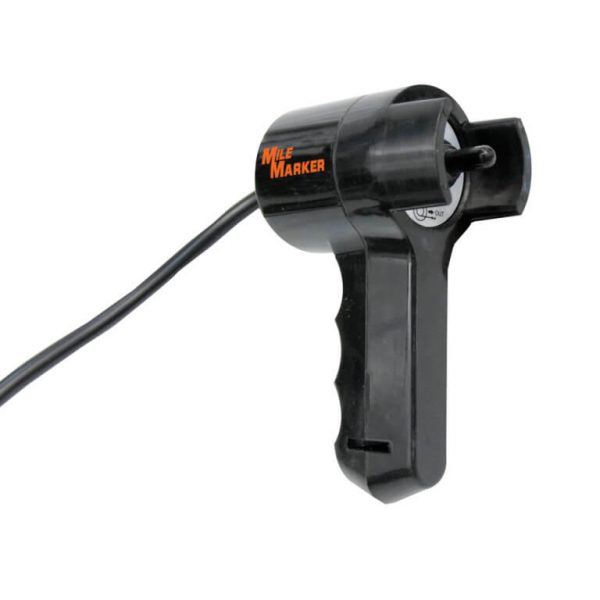

Control Pendant Power In, Power Out Remote, 12’
Dimensions (LxWxH) 22.25” X 6.25” X 8.00” (565.2 mm X 158.8 mm X 203.2 mm)
Synthetic Rope 3/8” X 100’ (9.53 mm X 30.5 m)
Drum Size 2.5” X 9” (63.5 mm X 228.6 mm)
Net weight 67 lbs. (30.3 kg)
Bolt Pattern 4 Bolt Pattern, 4.5” X 10”, (114.3 mm X 254 mm)

Performance

LINE PULL LINE PULL LINE SPEED LINE SPEED MOTOR CURRENT
lb kg fpm mpm amps @ 12 V
0 0 25.7 7.8 85
2000 907 15.1 4.6 150
4000 1814 10.5 3.2 210
6000 2722 7.9 2.4 270
8000 3629 5.9 1.8 320
9500 4309 4.3 1.3 375

Features

4.8 HP Series Wound Motor
Rugged Planetary Gear Sets
Clockable Gear Housing
Fast Line Speeds
Submersible, 400 Amp Solenoid
Automatic Load Holding Brake
Corrosion Resistant Stainless Steel Fasteners
100′ Synthetic Rope
Aluminum Hawse Fairlead
Waterproof
Handheld Remote control
